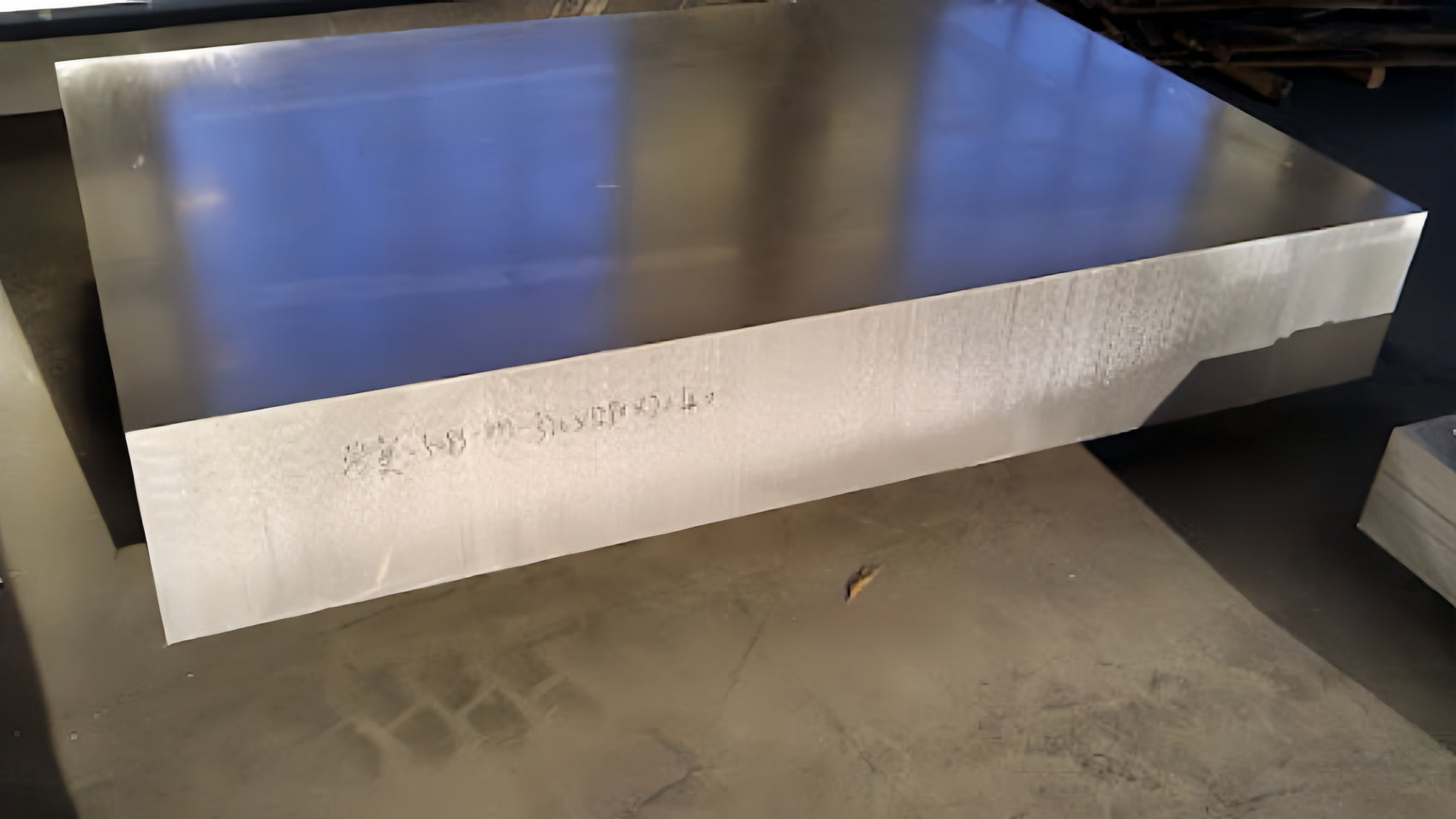

Basic Information of 5083 Aluminum Plates

• Name: 5083 Aluminum Plate
• Common Temper Conditions: O, H111, H112, H321, H116, H131, H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38
• Equivalent Names: A95083, AlMg4, 5Mn, DIN 3.3547, EN AW - 5083, GM41, Al Mg4.5 Mn0.7

Size Specifications of 5083 Aluminum Plates

1. 5083 Aluminum Thin Plates
   • Thickness: 0.01” - 0.24” (0.2mm - 6mm)
   • Width: 35.4” - 104” (900mm - 2650mm)
2. 5083 Conventional Aluminum Plates
   • Thickness: 0.24” - 9.84” (6mm - 250mm)
   • Width: 35.4” - 104” (900mm - 2650mm)
3. 5083 Ultra-wide Aluminum Plates
   • Thickness: 0.24” - 9.84” (6mm - 250mm)
   • Width: 35.4” - 104” (900mm - 4300mm)
4. 5083 Cast Aluminum Plates
   • Thickness: 0.24" - 15.75" (6mm - 400mm)
   • Width: 52” - 73.2” (1320mm - 1860mm)
5. 5083 Aluminum Armor Plates
   • Thickness: 0.32” - 9.84” (8mm - 250mm)
   • Width: 35.4” - 104” (900mm - 2650mm)
6. 5083 Marine Aluminum Plates
   • Thickness: 0.12" - 9.84" (3mm - 250mm)
   • Width: 35.4” - 104” (900mm - 2650mm)

• Length: Maximum 6 meters. Fixed length, cut length, or customized length is available.

Surface Treatment and Lamination Types of 5083 Aluminum Plates

1. Surface Treatment Methods: Including mill finish, bright finish, polishing, hairline finish, brushing, sandblasting, checkered pattern, embossing, etching, etc.
2. Lamination Types: Blue film, transparent film, black and white film, paper (Film thickness: 50 microns, 80 microns)

Execution Standards of 5083 Aluminum Plates

Chemical Composition of 5083 Aluminum Plates

Mechanical Properties of 5083 Alloy Aluminum Plates

• Tensile Strength (σb): 110 - 136MPa
• Yield Strength σ0.2 (MPa): ≥110
• Elongation δ10 (%): ≥20
• Elastic Modulus (E): 69.3～70.7Gpa
• Annealing Temperature: 415℃

Main Features of SINOATF 5083 Aluminum Plates

1. Outstanding Lightweight Advantage: It has a low weight, presenting significant advantages in numerous application scenarios where weight reduction is required.
2. Excellent Rust Resistance and Corrosion Resistance: It possesses superior rust resistance and good corrosion resistance in marine and atmospheric environments, making it suitable for applications such as ships and offshore facilities.
3. Good Surface Quality and Flatness: The product has a clean and tidy surface with high flatness, meeting the requirements of applications with high demands for appearance and precision.
4. Superior Anodizing and Mechanical Properties: It has excellent anodizing quality and good mechanical properties. Its strength is higher than that of Series 1 and Series 3 aluminum plates. It belongs to a medium and high-strength aluminum alloy with good fatigue and welding properties.
5. Excellent Comprehensive Performance: It has the best welding characteristics among aluminum alloys, with high tensile strength and elongation. It has good formability and corrosion resistance during processing, and can be used to cover the aluminum surface and provide good packaging. Due to its excellent welding and fatigue resistance properties, it has become a high-quality aluminum alloy material for automobiles, ships, and liquefied natural gas (LNG) ships. Compared with ordinary aluminum plates, the 5083 anti-rust aluminum plate has a longer service life, and the material is recyclable, energy-saving, and environmentally friendly.
